Port Management

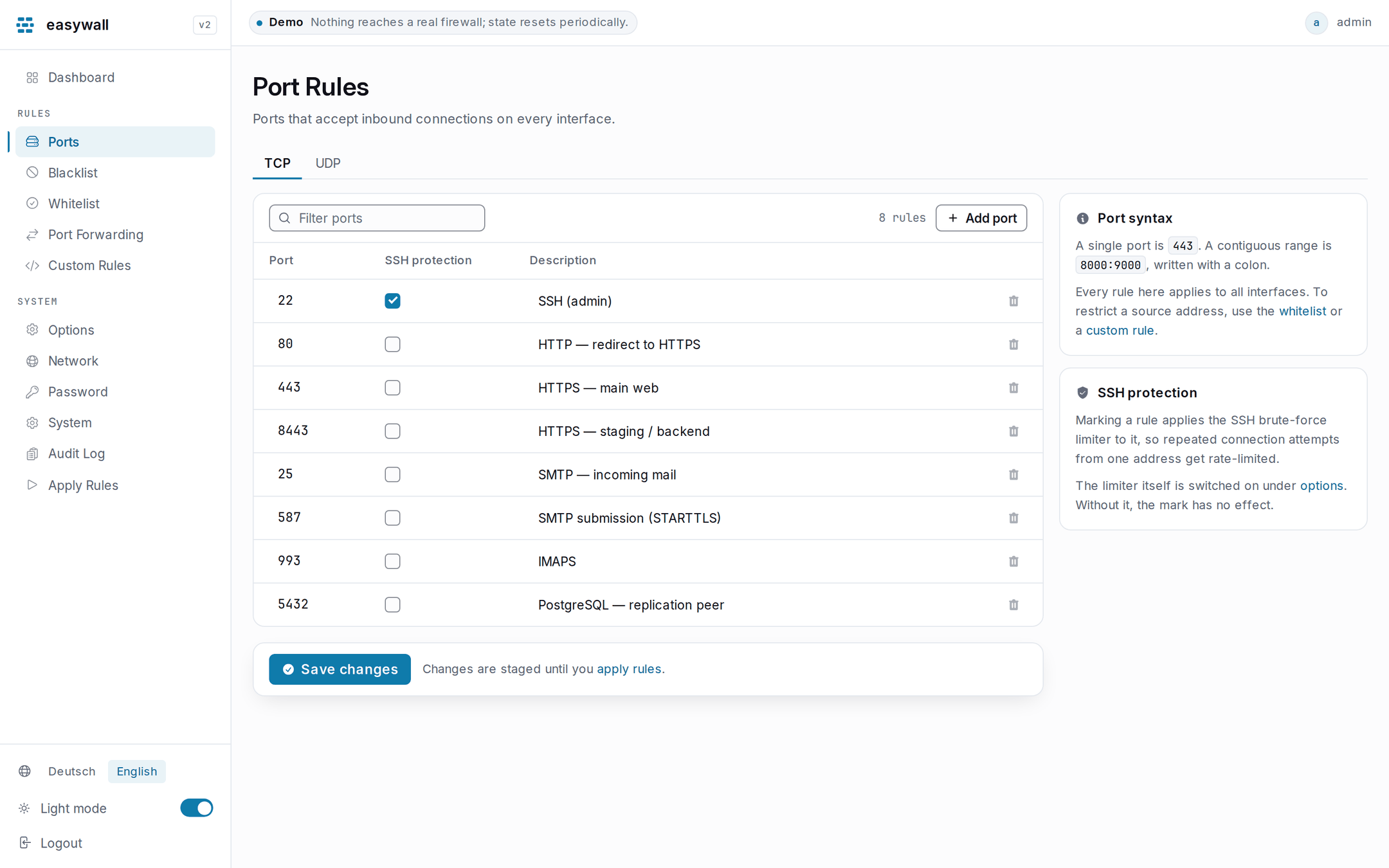

The Ports page manages which TCP and UDP ports are open on the firewall. All other incoming traffic is blocked by default.
Adding a Port Rule
- Navigate to Ports in the sidebar
- Select the protocol tab — TCP or UDP
- Enter the port number or range in the Port field
- Optionally enter a human-readable Description (e.g.
HTTPS,Game server) - Check SSH if this port runs an SSH server (see SSH Protection)
- Click Save
- Go to Apply to activate the new rules with two-step confirmation
Port Formats
| Format | Example | Description |
|---|---|---|
| Single port | 80 |
Opens exactly one port |
| Port range | 8000:9000 |
Opens all ports from 8000 to 9000 (inclusive) |
Port numbers must be between 1 and 65535. Ranges must be in ascending order (low:high).
SSH Protection
Any port marked as SSH is routed through the SSH brute-force protection chain. This chain rate-limits new incoming connection attempts per source IP to prevent dictionary and credential-stuffing attacks.
The rate limits are configured in /etc/easywall/easywall.toml:
[firewall]
ssh_brute_force = true
ssh_brute_force_connection_limit = 5 # max new connections per time window
ssh_brute_force_log = false # log blocked attempts
Always mark your SSH port as SSH, even if it is not port 22. The protection chain is applied per-port, so it works for non-standard SSH ports too.
Staged Changes
Changes on the Ports page are saved as staged rules. They do not affect the running firewall until you go to the Apply page and confirm activation. This allows you to prepare multiple rule changes in one batch and apply them atomically.
Common Setups
Web Server
| Protocol | Port | Description | SSH |
|---|---|---|---|
| TCP | 80 |
HTTP (redirect to HTTPS) | ☐ |
| TCP | 443 |
HTTPS | ☐ |
Mail Server
| Protocol | Port | Description | SSH |
|---|---|---|---|
| TCP | 25 |
SMTP | ☐ |
| TCP | 587 |
SMTP Submission | ☐ |
| TCP | 465 |
SMTPS | ☐ |
| TCP | 993 |
IMAPS | ☐ |
| TCP | 995 |
POP3S | ☐ |
Game Server (example: Minecraft)
| Protocol | Port | Description | SSH |
|---|---|---|---|
| TCP | 25565 |
Minecraft Java | ☐ |
| UDP | 25565 |
Minecraft Bedrock | ☐ |
SSH on Non-Standard Port
| Protocol | Port | Description | SSH |
|---|---|---|---|
| TCP | 2222 |
SSH | ☑ |
Deleting a Port Rule
Click the ✕ button next to any rule in the list to stage its deletion. The rule stays active until you Apply and confirm.
Troubleshooting
Port is open but connections are refused
The firewall allows the packet, but no process is listening on that port. Check with:
ss -tlnp | grep <port>
Port is in the list but still blocked
Staged changes have not been applied yet. Go to Apply and confirm.
SSH connection drops after Apply
The two-step activation is designed to prevent this. After Apply you have a confirmation window (default: 120 seconds) to verify connectivity from a second terminal. If you do nothing, the old rules are automatically restored.
Rate-limited by SSH protection
Your IP may have hit the connection rate limit. Wait a few minutes, then reconnect. To whitelist your management IP permanently, add it to the Whitelist.
