Firewall Filters

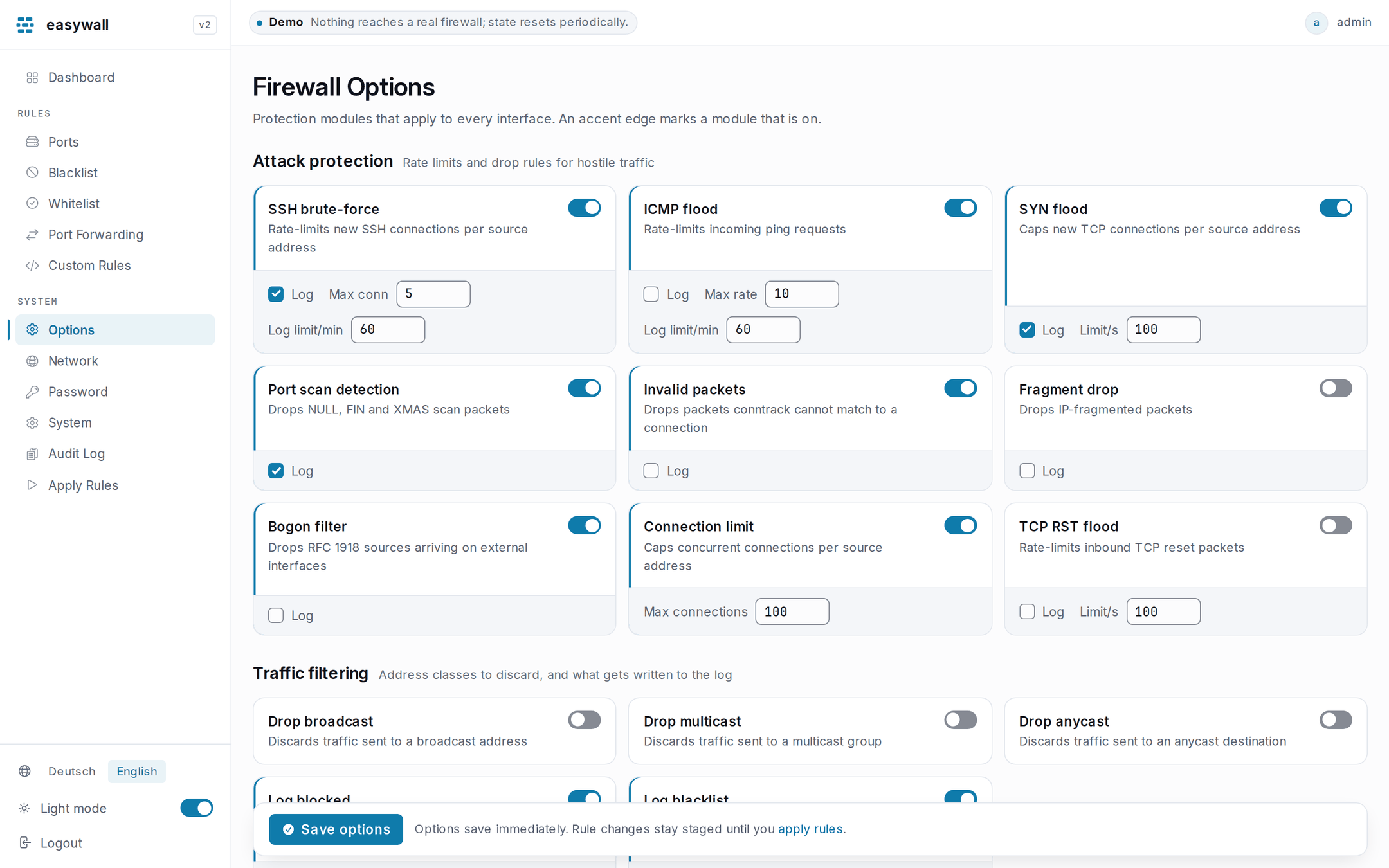

easywall ships with a set of optional protection modules that harden the host beyond simply opening and closing ports. They are configured in /etc/easywall/easywall.toml under the [firewall] section.

All filters are implemented as native nftables rules in the inet easywall table — no subprocess, no shell commands, no injection risk. Changes take effect only after Apply with the two-step confirmation.

Always-Active Rules

These rules are compiled into every ruleset and cannot be disabled:

Rule nftables expression Why it exists
Default DROP policy drop on input chain Deny-by-default posture
Loopback ACCEPT iif lo accept Local process communication always works
RELATED/ESTABLISHED ct state {related, established} accept Return traffic for outbound connections
ICMPv4 (0,3,11,12) ip protocol icmp icmp type {...} accept Echo reply, unreachable, TTL exceeded, param problem
ICMPv6 (1,2,3,4,128,129) icmpv6 type {...} accept Minimum set required for IPv6 to function
ICMPv6 ND (if enabled) types 133–136 Router/neighbor discovery for address autoconfiguration

Optional Modules

SSH Brute-Force Protection (ssh_brute_force)

Creates a named sshbrute chain. TCP ports marked as SSH in the Ports UI are redirected through this chain.

What it does: limits new connection attempts per source IP. Hosts that exceed the threshold have new connections dropped until the rate drops.

ssh_brute_force                  = true
ssh_brute_force_connection_limit = 5     # max new connections in the rate window
ssh_brute_force_log              = false # log dropped attempts to kernel log
ssh_brute_force_log_limit        = 60    # rate-limit log entries (per minute)

When to use: always, for any SSH port. The protection is negligible overhead for legitimate users but makes credential stuffing impractical.

ICMP Flood Protection (icmp_flood)

Rate-limits ICMP echo requests (ping) per source IP to prevent bandwidth exhaustion.

icmp_flood                       = true
icmp_flood_connection_limit      = 10    # max pings per second per source IP
icmp_flood_log                   = false
icmp_flood_log_limit             = 60

When to use: almost always. Disabling this allows a single host to flood your server with pings at full network speed.

SYN Flood Protection (syn_flood)

Rate-limits new TCP SYN packets per source IP. A SYN flood exhausts the server’s TCP connection state table, causing denial of service for legitimate clients.

syn_flood                        = true
syn_flood_log                    = false
syn_flood_limit                  = 100   # max new SYN packets per second per source IP

When to use: any server exposed to the internet. SYN flooding is one of the most common DDoS techniques.

Port Scan Detection (port_scan)

Creates a named portscan chain. Drops TCP packets with suspicious flag combinations used by network scanners (Nmap, etc.):

Scan Type Flags Set Flags Clear
NULL scan none —
FIN scan FIN SYN, RST, ACK
XMAS scan FIN, PSH, URG SYN, RST, ACK
SYN+FIN SYN + FIN —
SYN+RST SYN + RST —
FIN+RST FIN + RST —
PSH alone PSH SYN, ACK
URG alone URG SYN, ACK
port_scan                        = true
port_scan_log                    = false

When to use: internet-facing servers. Note: some of these patterns are also used by broken TCP implementations — if you see legitimate traffic dropped, check logs with port_scan_log = true.

Invalid Packet Drop (drop_invalid_packets)

Drops packets in the INVALID conntrack state. These packets have no known connection entry and do not match any expected connection state — they are often used in TCP reset attacks or are remnants of expired connections.

drop_invalid_packets             = true
drop_invalid_packets_log         = false

When to use: almost always. There are very few legitimate reasons for a packet to be in INVALID state on a server.

Fragment Drop (drop_fragments)

Drops IP-fragmented packets. IP fragmentation is rarely needed in modern networks (MTU discovery handles path sizing) and is commonly used in evasion attacks that split exploit payloads across fragments.

drop_fragments                   = false
drop_fragments_log               = false

When to use: production servers on well-configured networks. Avoid on networks with legacy devices or MTU issues — fragmentation may be legitimate there.

Bogon Filter (bogon_filter)

Drops inbound packets whose source IP belongs to private, loopback, link-local, or reserved address ranges (RFC 1918 / RFC 5735). Such packets on a public interface indicate IP spoofing.

Filtered ranges:

CIDR Type
0.0.0.0/8 “This network”
10.0.0.0/8 RFC 1918 private
100.64.0.0/10 Shared address space (RFC 6598)
127.0.0.0/8 Loopback
169.254.0.0/16 Link-local
172.16.0.0/12 RFC 1918 private
192.0.2.0/24 Documentation (TEST-NET-1)
192.168.0.0/16 RFC 1918 private
198.51.100.0/24 Documentation (TEST-NET-2)
bogon_filter                     = false
bogon_filter_log                 = false

When to use: servers with a single public IP, no private network interfaces that carry legitimate traffic, and no VPNs that use RFC 1918 addressing. Do not enable if your server is behind a NAT (e.g., cloud instances where RFC 1918 is the actual LAN) or has a private management interface.

Connection Limit per Source IP (connection_limit_per_ip)

Limits the total number of simultaneous active connections from a single source IP. This prevents a single host from monopolising all connection state.

connection_limit_per_ip          = false
connection_limit_max             = 100    # max simultaneous connections per source IP

When to use: web servers, API servers, and any public-facing service where you want to prevent a single client from consuming all connection state. Tune connection_limit_max to a value above your expected legitimate maximum.

TCP RST Flood (tcp_rst_flood)

Rate-limits inbound TCP RST packets per source IP. Sending forged RST packets is used to terminate established connections (TCP reset attacks).

tcp_rst_flood                    = false
tcp_rst_flood_log                = false
tcp_rst_flood_limit              = 100    # max RST packets per second per source IP

When to use: any server where connection teardown attacks are a concern (e.g., long-lived connection services like SSH, VPN endpoints, database proxies).

Broadcast Drop (drop_broadcast)

Drops packets with a broadcast destination address on the input chain. Broadcast traffic from external networks is almost always unwanted on a server.

drop_broadcast                   = false

Multicast Drop (drop_multicast)

Drops packets with a multicast destination address on the input chain.

drop_multicast                   = false

When to use: enable if you do not use any multicast protocols (mDNS, SSDP, etc.).

Logging

Two global logging options add audit-trail rules:

Block Logging (log_blocked_connections)

Adds a rate-limited log rule just before the final drop in the input chain. All dropped traffic is logged to the kernel journal with the prefix easywall drop:.

log_blocked_connections       = false
log_blocked_connections_limit = 60     # log entries per minute (burst)

View logs: journalctl -k | grep "easywall drop:"

Blacklist Logging (log_blacklist_connections)

Logs packets matched by the blacklist before dropping them.

log_blacklist_connections       = false
log_blacklist_connections_limit = 60

View logs: journalctl -k | grep "easywall blacklist:"

For a typical internet-facing Linux server:

[firewall]
ssh_brute_force       = true
icmp_flood            = true
syn_flood             = true
port_scan             = true
drop_invalid_packets  = true
drop_fragments        = false
bogon_filter          = false   # enable only if no private NICs / no cloud NAT
connection_limit_per_ip = false
tcp_rst_flood         = false
drop_broadcast        = false
drop_multicast        = false
log_blocked_connections = false  # enable temporarily for debugging
